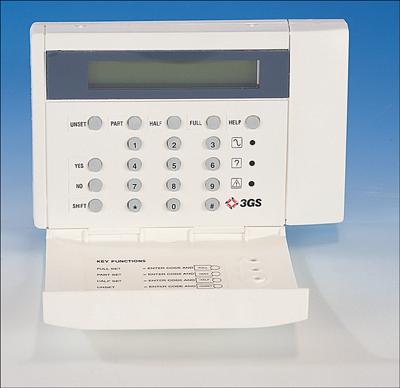

3GS RKD Node

Overview

Together with the 3GS Controller, the IntelliPower PSU, the 8+1 Node and the 6-Output Node, the RKD is the final unit which constitutes the basic 3GS system.

It offers 2 line by 24 character backlit adjustable LCD display of system status messages to the user, and a 20-key backlit keypad for entry of data, including user codes, for manipulation of system menus.

2 Zone Inputs + 1 Programmable Relay Output:

As well as its functionality as an RKD, the unit has 2 zone inputs (2K2 EOL) for monitoring of alarm devices, such as the final exit and the "push to set" button, or sensors in the vicinity of the RKD.

In addition, the on-board relay output allows the installer to connect an output device, such as a sounder, strobe or door lock to the RKD, which may allow him to save wiring a separate output device to achieve this functionality

On-board buzzer:

As with all Nodes, the RKD has its own on-board buzzer, which is used to give feedback to users of the system when entering codes, entering or leaving the premises, etc.

Wall-mounting the RKD Node:

The RKD has been designed to facilitate easy installation, either to connect with wall-mounted electrical trunking, or flush-mounted electrical patress boxes.

Wiring the RKD:

The RKD has been specifically designed to enable fast installation and servicing. The plastic side cover (tampered) is removed, allowing ready access to all wiring terminals.

Privacy cover or flap:

The RKD Node also features a hinged privacy cover, which allows the keyboard and the LCD display to be hidden from normal view (i.e. out of public view). If not required, the cover can be removed, and its plastic hinge mountings twisted off.

Status LED indicators:

The 3GS RKD Node has three status LEDs, viewable when the privacy cover is either open or closed. They are:

• GREEN:
  Mains Supply
  Steady = OK,
  Flashing = supply problem
• YELLOW:
  System Status Warning
  Steady = Warning,
  Flashing = System Alert
  - usually accompanied by buzzer
• RED:
  Ringnet Communications
  Flashing = OK;
  Steady = Comms Failure

User Instructions:

The privacy cover has been designed to allow the placing of an instruction label on its reverse side (viewable when open). Thus, the RKD can effectively be "customised" to reflect the software version running on the 3GS system.

Technical Specifications:

Cabinet Dimensions:

122mm x 175mm x 23mm

Min.operating voltage:

9.5V

Max. operating current:

300mA

Quiescent current:

100mA

On-board zones:

2K2 EOL

On-board output:

2A relay

Display:

2 line x 24 char. backlit LCD

Memory backup:

Lithium cell

Intensity and viewing angle:

Programmable

Humidity range:

0% to 90% , non-condensing
